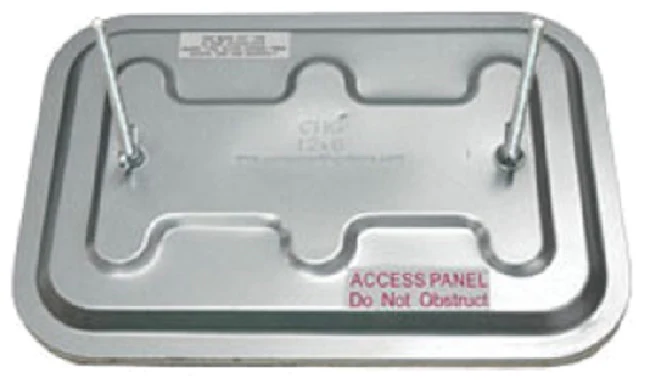

Component Hardware ACC-10X6 Hi-Temp Grease Duct Access Door

• 12" x 8" High Temperature Access Door
• Leak resistant and consists of two layers of stamped, hot dipped galvanized steel and one 16 g. black iron backing plate for ultimate safety and durability
• Hi-Temperature Ceramic Fiber Gasket (2300°F, 1260°C max) is permanently bonded to the outside panel of the access door to eliminate leakage
• Zinc plated conical springs are installed, between inner and outer plates, to facilitate opening
• Zinc coated wing nuts are easily turned by hand
• No measuring needed - self-adhesive mounting template provided
• Easy to install
• 6" (152mm) break-away mounting studs permit installations with fire wrap insulation
• Studs may be broken at 2" (102mm) for standard installations.
• Meets NFPA #96 Standards

Manufacturer Details:

Hi-Temp Access Door, high-temp gasket rated to 2300°F, 12" x 8" normal size
