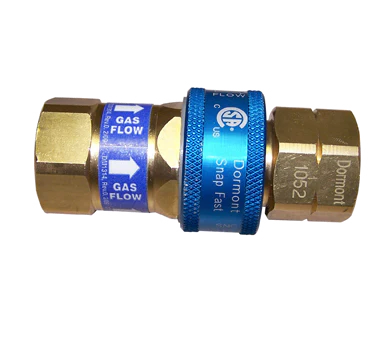

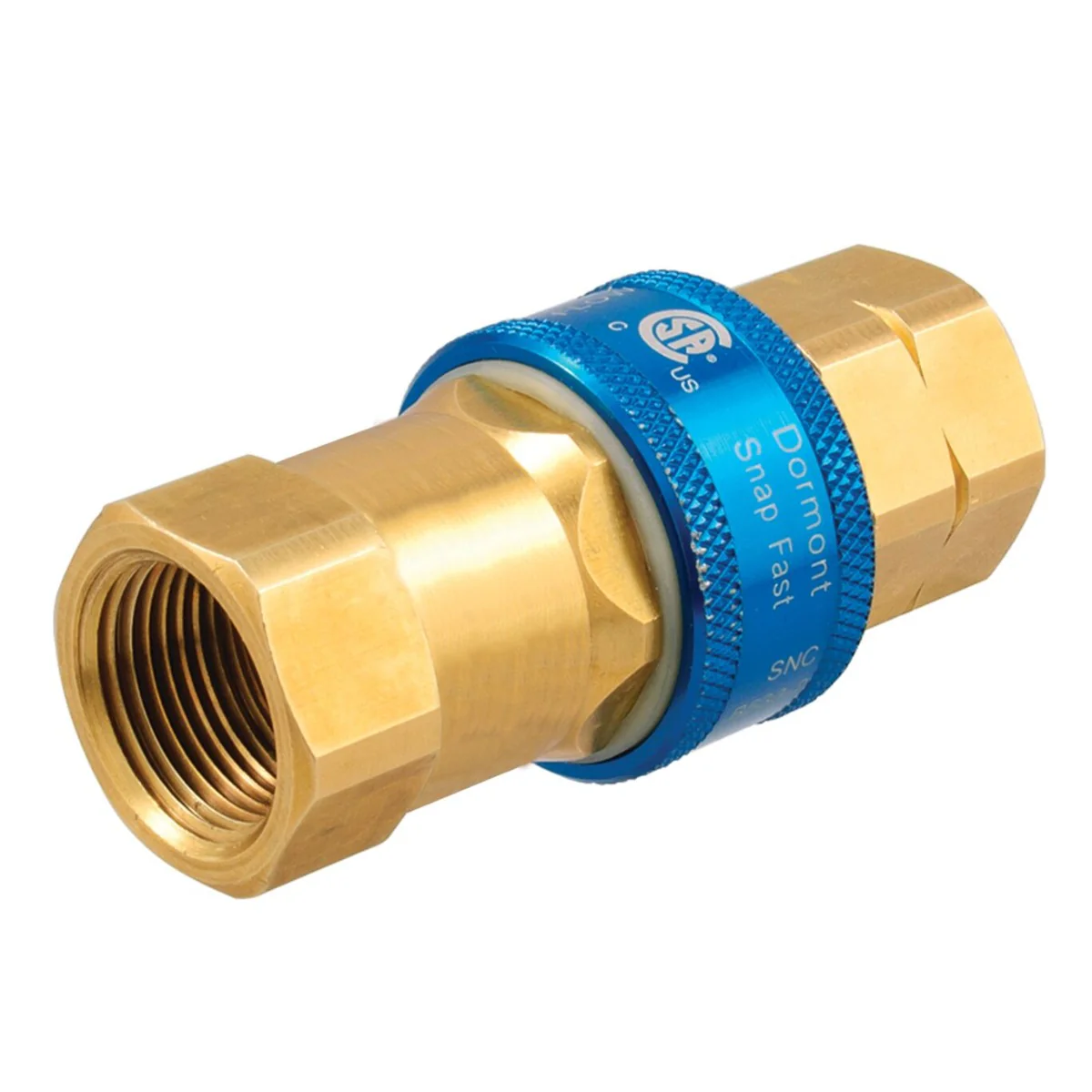

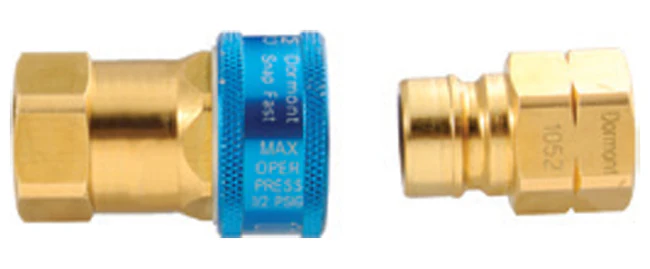

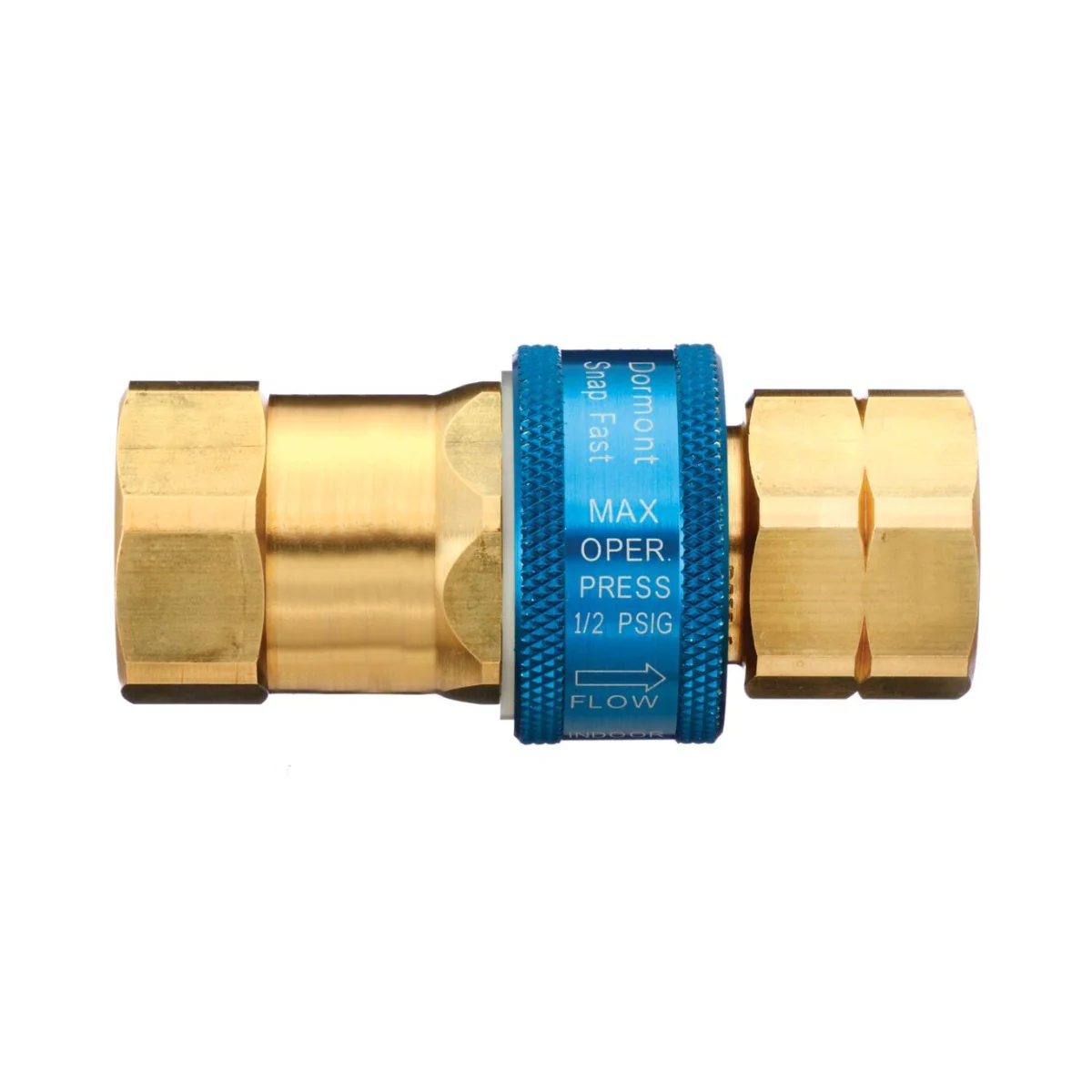

Dormont A75 SnapFast Quick Disconnect Coupler

This SnapFast Quick Disconnect is Dormont's exclusive "Push to Connect" technology.

This 3/4" ID push-to-connect quick-disconnect coupling is designed specifically to connect and disconnect moveable equipment used in the foodservice industry. The quick-disconnect contains a thermal shutoff feature which is a polymer ring located inside the nipple that will melt and close the gas supply valve if the temperature rises above 350 degrees F. This quick-disconnect also features a push-to-connect feature which allows the coupling's components to be joined quickly by simply pushing them together until they snap into place. There is no need to hold or slide the operating ring.

• 3/4" in pipe size
• One-handed quick-disconnect design
• Brass body, carbon steel threaded end fittings, aluminum collar
• Lead Free: Not In Scope
• Shuts off automatically when disconnected or when temperature reaches 350°F
• Meets ANSI Z21.69 standard
• Certified by CSA for commercial gas cooking equipment

Dormont 3/4" SnapFast QD
