Dormont RDC48 Restraining Cable

The Dormont RDC48 Restraining Cable (also called Restraining Device) is a critical safety accessory for Dormont gas connectors and quick-disconnect systems. Designed specifically for 48-inch gas hoses, this coiled restraining cable limits the movement of castored cooking equipment (ranges, fryers, ovens, etc.) to prevent over-extension, kinking, or damage to the gas connector during cleaning, servicing, or repositioning.

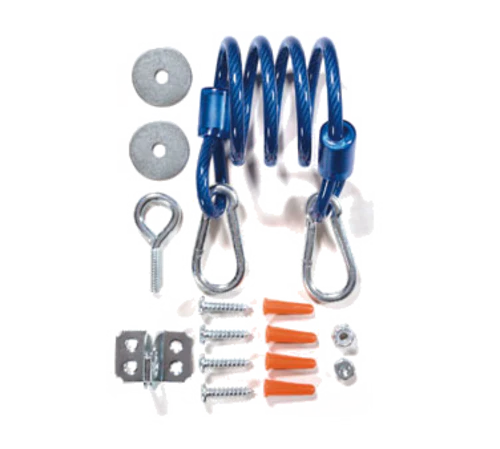

The cable is intentionally shorter than the gas connector, ensuring the hose never reaches its maximum stretch point. It includes all necessary mounting hardware (spring-loaded hooks, staple bracket, eye-bolt, washers, nuts, screws, and anchors) for secure attachment to the wall and equipment frame.

Key Features and Benefits:

• Designed for 48" Connectors — Perfect match for standard 48-inch Dormont Blue Hose gas connectors
• Coiled Safety Cable — Approximately 35" effective length to safely limit pull
• Complete Installation Kit — Includes everything needed for quick, code-compliant setup
• Durable Construction — High-strength cable with plastic-coated end fittings for improved sanitation and corrosion resistance
• Easy Installation — Mounts parallel to the connector; disconnect only after shutting off gas
• Code Compliance — Meets ANSI Z21.69 / CSA 6.16, ANSI Z21.41 / CSA 6.9, NFPA 54, and other gas safety standards
• Lightweight — Approx. 0.46 – 0.74 lbs for minimal added weight

Why Install a Restraining Cable? Required by national and local codes for movable gas appliances. It protects expensive gas connectors, reduces leak risks, and enhances overall kitchen safety. Always install the restraining device parallel to the connector and reconnect it before restoring gas service.

Applications:

• Commercial kitchens and restaurants
• Gas ranges, fryers, ovens, griddles, and broilers on casters
• Mobile cooking equipment with quick-disconnect systems
• Foodservice operations requiring frequent equipment movement for cleaning

Pair it with Dormont gas connectors (e.g., 3/4" or 1/2" sizes) and safety shut-off valves for a complete compliant gas connection system.
